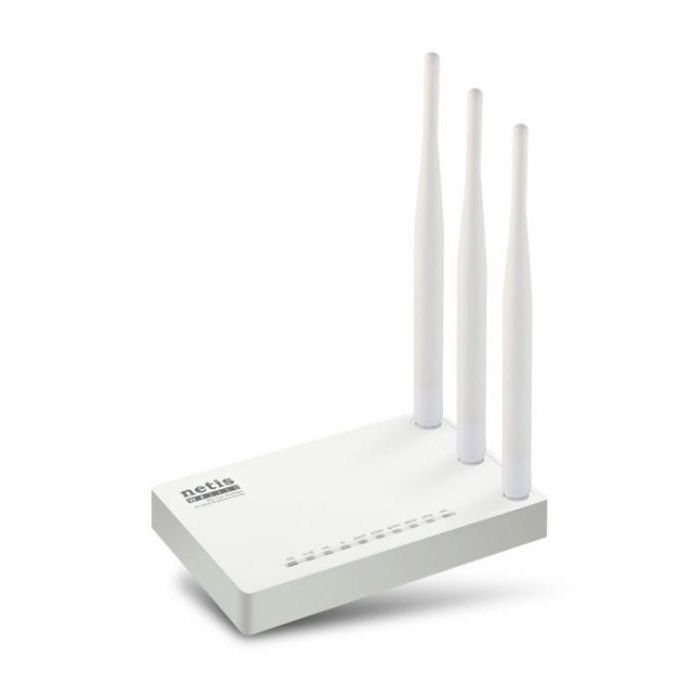

Netis AC750 Wireless Dual Band Router (WF2710)

Based on the next generation of Wi-Fi technology —— 802.11ac, the netis router WF2710 delivers wireless high speed up to 450Mbps(5GHz) + 300Mbps (2.4GHz). In addition the netis routers WF2710 workson both 2.4GHz and 5GHz wireless bands simultaneously, to supportgeneral tasks like web surfing, e-mailing and file sharing on 2.4GHz band, and to avoid interference on 5GHz band for Wi-Figaming, HD media streaming, and VoIP phone calling.



The netis routers WF2710 supports AP, Repeater, AP+WDS, WDS, Client modes, providing various wireless solution to build or extend the wireless network. Equipped with one 5GHz 5dBi Antenna and two 2.4GHz 5dBi Antenna, the netis routers WF2710 allows you to enjoy the wireless freedom with incredible signal and coverage in any large home or office.







SPECIFICATIONS



Wireless
Standards	IEEE 802.11b/g/n 2.4GHz IEEE 802.11a/n/ac 5GHz
Signal Rate	Up to 300Mbps2.4GHz UP to 433Mbps 5GHz
Frequency Range	2.4-2.4835GHz; 5.180-5.825GHz
Transmit Power	20dBm(MAX)
Data Transfer Rate	802.11ac: 80MHZ(433Mbps) 802.11n: 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps) 20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) 801.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps) 802.11b: (11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
Wireless Mode	AP, WDS, AP+WDS, Repeater, Client, Multiple AP
Wireless Security	64/128-bit WEP, WPA-PSK/WPA2-PSK (TKIP/AES) SSID Broadcast Enable/Disable Wireless MAC Filtering

Hardware
Standards	IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
Interface	1 *10/100M Auto MDI/MDIX RJ45 WAN port 4 *10/100M Auto MDI/MDIX RJ45 LAN port
LED	PWR, WPS, SYS, 2.4G, 5G, LAN1 ~4, WAN, WPS
Button	Default, WPS
Antenna	3 * external 5dBi antenna, omni-directional
Power Supply	DC 9V/500mA(Output)
Dimensions (L x W x H )	145 x 90 x 19mm
Weight	151g

Software
WAN Type	DHCP, Static IP, PPPoE, L2TP, PPTP, Dual Access, WISP
Port Forwarding	Virtual Servers, Port Triggering, UPnP, DMZ, FTP Private Port
QoS	WMM, Bandwidth Control
Access Control	IP/MAC/Domain Filtering
VPN Pass-through	PPTP, L2TP, IPSEC
Others	DDNS, Static Routing, WOL, Remote Management, Firmware upgrade, Backup & Restore

Others
Certification	FCC, CE, KC
Environment	Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Package	1 * WF2710 1 * 9V/500mA Power Adapter 1 * Ethernet Cable 1 * Quick Installation Guide
